Bell States

The Bell states are four states that can be created when two qubits are maximally entangled. The four states are:

  1. Phi Plus State

  2. Phi Minus State

  3. Psi Plus State

  4. Psi Minus State

IBM Quantum Composer: https://quantum.ibm.com/composer/

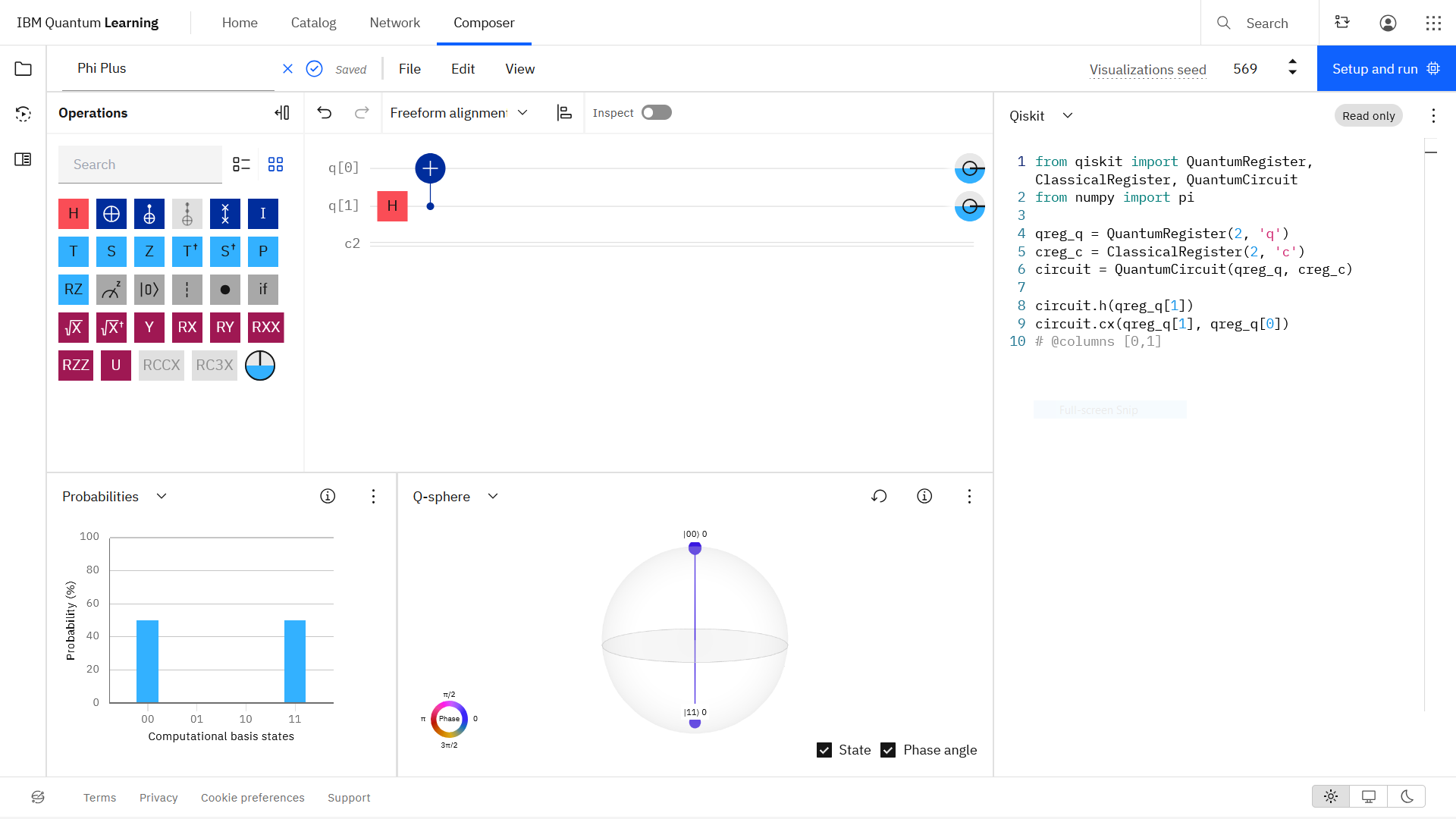

1. Phi Plus State

\(\ket{\Phi^+} = \frac{\ket{00} + \ket{11}}{\sqrt{2}}\)

e6af5ccf5d4247fea9088b00c8ec0cfd

2. Phi Minus State

\(\ket{\Phi^-} = \frac{\ket{00} - \ket{11}}{\sqrt{2}}\)

8919ec21863f4d27b6014c3f4d11c068

3. Psi Plus State

\(\ket{\Psi^+} = \frac{\ket{01} + \ket{10}}{\sqrt{2}}\)

3de6d6565e93458891e71e19ce75878a

4. Psi Minus State

\(\ket{\Psi^-} = \frac{\ket{01} - \ket{10}}{\sqrt{2}}\)

7b7c40f545cd439096f04f94a8e30540
